Ppgl Coils

Next > >

Ppgl Coils

Get a Price/Quote

Send Inquiry

Product Code : 29

Price And Quantity

Minimum Order Quantity
1 Ton
Price
65 INR/Kilograms

Product Specifications

Usage
Industrial
Product Type
Ppgl Coils

Surface Treatment
Painted
Material
Steel

Grade
Industrial

Product Description

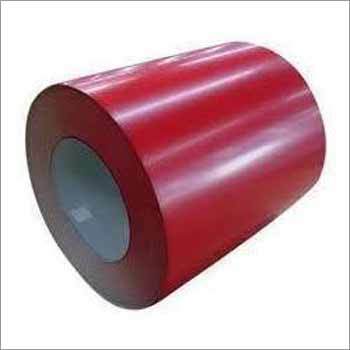

Backed by huge industry experience, we are able to manufacture and supply a comprehensive assortment of PPGL Coils. Offered coils are manufactured with the high precision by make utilization of the premium quality materials and contemporary technology in synchronization with the set industry standards. These coils are majorly used in the interior and exterior of the varied places like warehouses, community buildings, etc. Highly acknowledged due to its light weight structure, we provide these PPGL Coils in diverse dimensions and specifications.

Features:

Durable finish
Superior coating resists cracking
Easy to assemble

CONTENTS	SPECIFICATIONS
Base Metal	Coil Rolled. Galvanized, galvanized aluminum stainless
Thickness	0.15 to 1.25mm *
Width	600 to 1250mm
Coil ID	508 and 610 mm
Coil OD	1650 mm max
Coil weight	10mt max
Hardness (HRB)	35 99
UTS (MPA)	240 700
PAINT Systems	Primers: Epoxy , polyester & poly urethane Top coat : regular modified polyester (RMP) Silicon modified , polyester (SMP), super durable polyester(SDP), poly vinyldene fluoride (PVDF),Polyurethane , acrylics ,plastisol, Metallics , Back coat : epoxy polyester
Colors	As per RAL shades / customer requirements
Guard film (optional)	40 micron +/- 5 microns
Cut to length	500 mm 4000mm
Slits coils	28mm and above
Standards	JIS G 3312, ASTM, A 755, EN 10169-1, IS 14246
Packing	Sea worthy Export packing Eye-to-sky on wooden skid.
* Note:	0.15 - 0.20 mm to be processed only Full Hard.

Colour Coated Profile Sheets
Thickness (mm)	Width (mm)	Cover Width After Profile (mm)	Length (mm)	Pkt. Weight (MT)
0.40 - 1.00	1220	1000 & 1060	10,000 Max	5 Max
